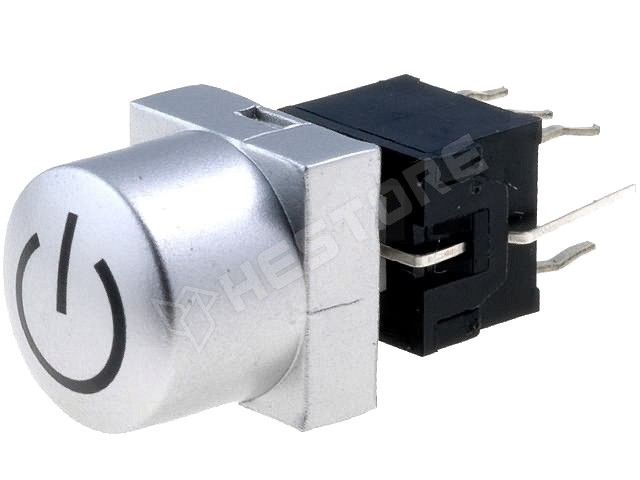

PB61302AL-4-101

Name: PB61302AL-4-101
Brand: HIGHLY
SKU: 100.302.63
Availability: SoldOut

Microswitch

bistabil;
DC terhelés:0,1A/30V;
kék LED

RoHS	no
Manufacturer	HIGHLY
Case	PB
Mounting	THT
Terminal pitch	2.54x5.08mm
Operating temperature	-10...80°C
Body dimensions	10 x 10mm, 10x10mm
Leads	straight, for PCB
Illumination	LED
Min. insulation resistance	100mΩ, 100MΩ
Type of switch	microswitch, keypad
Stable positions number	2-position
DC contacts rating	0.1 A / 30 VDC
Switching method	ON-ON
Contacts configuration	DPDT
Operating Force	1.5N
Max. contact resistance:	50mΩ
Electrical life	10000cycles
Actuator colour	silver
Button marking	POWER
Button height	19.8mm
Button shape	round
Manufacturer series	PB613
Backlight colour	blue
DC contacts rating @R	0.1A / 30V DC
Összes pozíciók száma	2
Light	LED
