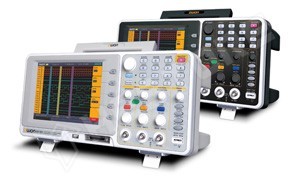

MSO7102T, 100MHz, 2 csatorna, TFT, OWON Digitális tárolós oszcilloszkóp + log. anal.

MSO7102T, 100MHz, 2 csatorna, TFT
OWON Digitális tárolós oszcilloszkóp + log. anal.

Rend. szám:

10028376

Elérhető:

Nettó ár:

235 000 Ft

Bruttó ár:

298 450 Ft

Megjegyzés:

Autoscale function
Support both DSO and LA
25MHz~100MHz Bandwidth, up to 500MS/s real time sample rate
16 optional logic input channels
Max 6000 points record length for each channel
Dual channels + External trigger + Logic Analyzer
7.8 inch color LCD display for large view
Support USB data transmission, display by real-time
Advanced trigger functions: Edge trigger, Bus trigger, Pattern trigger,Sequential queue trigger,
Distributed queue trigger and Data width trigger.
USB Memory Device

Fájlok:

Oscilloscope Specification

Model Name	MSO7102T
Bandwidth	100MHz
Sample Rate(Real time)	500 MS/s(dual channels) 1GS/s (single channel)
Rise time	≤3.5ns
Display	7.8 inch color LCD, 256 colors, STN/TFT screen, 640×480 pixels
Channel	Dual channels + external trigger + Logic Analyzer
Horizontal scale (s/div)	5ns/div-100s/div step by 1-2-5
Interval(dT)accuracy(full bandwidth)	Single：ą(1 interval time+100ppm×reading+0.6ns) Average>16：ą(1 interval time +100ppm×reading+0.4ns)
Vertical Sensitivity	2mV/div -10V/div
DC Gain Accuracy	±3%
Vertical resolution (A/D)	bits resolution (2CH simultaneously)
Max. Input Voltage	400V(DC + AC Peak)
Input impedance	1MΩ±2% in parallel with 15pF±3pF
Input coupling	DC,AC,GND
Trigger Mode	Edge、Video、Alternate、Mains supply
Sampling Mode	Normal, Peak detection, Average
Record length	Max. 6000 points on each channel
Waveform storage	4 waveforms
Automatic Measurement	Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width, Overshoot, Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B(up)、Delay A→B(dn)
Waveform math	＋,－, Inverted
Power supply	100-240VACRMS,50Hz,CAT
Battery	7.4V, 8000mAh
Dimension	370mm×180mm×120mm
Weight	2.1KG

Logic Analyzer specification

Sample rate (real time)	1S/s～400MS/s
Bandwidth	66MHz
Channels	16 optional
Record length	4M/channel
Input impedance	1MΩ±2%
Trigger mode	Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger
Trigger position setting	Pre-trigger, mid-trigger, Post-trigger
Threshold Voltage	±10V(4 settings)
Input Signal Range	±15V
Data search	Available
Data System	Binary system, Decimal system, Hex
Digital filter	0,1,2 optional
Setting storage	Support 10 settings
USB waveform storage	Available
