| Rend. szám: |
10025509 |
| Elérhető: |
1 db |
| Nettó ár: |
272 000 Ft |
| Bruttó ár: |
345 440 Ft |
| |
|
| |
|
| Gyártó: |
ATTEN |
| Megjegyzés: |
- Manufacturer : Atten Electronics

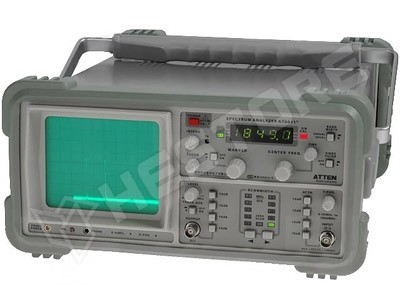

- The AT5011P spectrum analysers are designed for precise spectral analysis of signals within the frequency range from 0,15MHz to 1050MHz. The devices are also fitted with tracking generator.
- When used with the AZ530-M additional EMC probes, the analysers can detect points with too high emission of electromagnetic radiation e.g. on computer boards, cable television devices, portable phones. Also they can be used for testing EM compatibility of other electronic devices.
- Characteristics:
- - LED 4,5 digit display for readouts of centre frequency and markers values (0,1 Mhz resolution)
- - CRT: 6 inch, divisions 8x10
- - fine and coarse adjustment of centre frequency
- - selector for frequency deviation from 100 kHz/div. to 100 Mhz/div.
- - input impedance: 50 ?
- Features:
- Frequency range : 0,15 MHz to 1050 MHz
- Centre frequency accuracy : ą100kHz
- Marker accuracy : ą(0.1%range+100kHz)
- Digital readout resolution : 100kHz (4,5 digit LED)
- Frequency stability : better than 150kHz/h
- Resolution : 400Hz and 20kHz
- Filter Video : 4kHz
- Amplitude range : -100dBm to +13dBm
- Displaying range : 80dB (10dB/div.)
- Reference level : -27dBm to +13dBm (every 10dBm)
- Reference level accuracy : ą2dB
- Noise mean level : -99dBm (bandwidth 20kHz)
- Distortion : <-55dBc: 2 and 3 harmonics;
- Intermodulation (3 harmonics) : -70dBc (two signals with space >3MHz)
- Sensitivity : better than -90dBm
- Logarithmic scale accuracy : ą2dB (without attenuation) to 250MHz
- Input attenuator : 0 to 40dB (switched with 10dB step)
- Input attenuator accuracy : ą1dB/10dB in steps
- Max. input level : +10dBm, ą25VDC (attenuation 0dB)
- +20dBm (attenuation 40dB)
- Scanning width : 100kHz/div. to 100MHz/div. in steps 1-2-5 and 0Hz/div. (Zero Scan)
- Tracking generator
- Output frequency : 0,15MHz to 1050MHz
- Output attenuator : 0 to 40dB (with 10dB step)
- Output attenuator accuracy : ą1dB
- Characteristics flatness : ą1,5dB
- Output impedance : 50? (BNC)
- RF interferences : <20dBc
- Output level : -50dBm to +1dBm (with 10dB step plus cont. adjustment)
- Supply voltage : 230V ą10%, 50/60Hz
- Dimensions : 380 x 285 x 125mm
- Weight : 7 kg
|
