ATTINY45-20PU
8-Bit AVR, 4K Flash


Rend. szám: 10024916
Elérhető: 152 db
Nettó ár: 670 Ft
Bruttó ár: 850.9 Ft

 db

10- 736.6 Ft
Gyártó: ATMEL

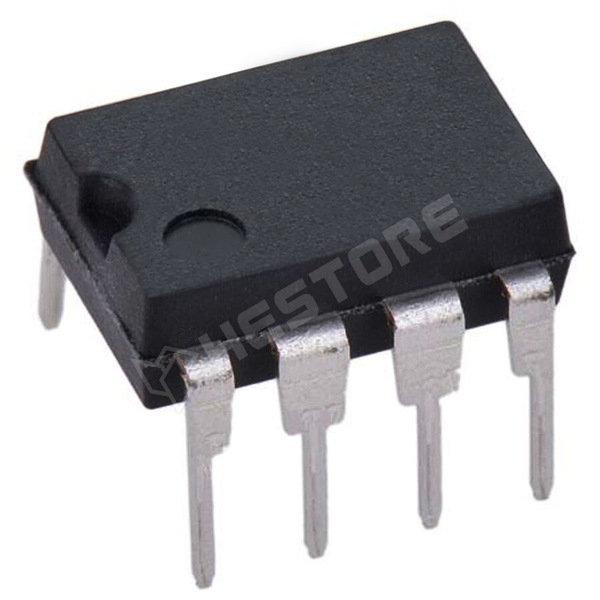

Kivitel: DIP8
Fájlok: ATTINY45.pdf

  • High Performance, Low Power AVR® 8-Bit Microcontroller
  • Advanced RISC Architecture
    - 120 Powerful Instructions - Most Single Clock Cycle Execution
    - 32 x 8 General Purpose Working Registers
    - Fully Static Operation
  • Non-volatile Program and Data Memories
    - 2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny25/45/85)
  • Endurance: 10,000 Write/Erase Cycles
    - 128/256/512 Bytes In-System Programmable EEPROM (ATtiny25/45/85)
  • Endurance: 100,000 Write/Erase Cycles
    - 128/256/512 Bytes Internal SRAM (ATtiny25/45/85)
    - Programming Lock for Self-Programming Flash Program and EEPROM Data
    Security
  • Peripheral Features
    - 8-bit Timer/Counter with Prescaler and Two PWM Channels
    - 8-bit High Speed Timer/Counter with Separate Prescaler
  • 2 High Frequency PWM Outputs with Separate Output Compare Registers
  • Programmable Dead Time Generator
    - USI - Universal Serial Interface with Start Condition Detector
    - 10-bit ADC
  • 4 Single Ended Channels
  • 2 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
  • Temperature Measurement
    - Programmable Watchdog Timer with Separate On-chip Oscillator
    - On-chip Analog Comparator
  • Special Microcontroller Features
    - debugWIRE On-chip Debug System
    - In-System Programmable via SPI Port
    - External and Internal Interrupt Sources
    - Low Power Idle, ADC Noise Reduction, and Power-down Modes
    - Enhanced Power-on Reset Circuit
    - Programmable Brown-out Detection Circuit
    - Internal Calibrated Oscillator
  • I/O and Packages
    - Six Programmable I/O Lines
    - 8-pin PDIP, 8-pin SOIC and 20-pad QFN/MLF
  • Operating Voltage
    - 1.8 - 5.5V for ATtiny25/45/85V
    - 2.7 - 5.5V for ATtiny25/45/85
  • Speed Grade
    - ATtiny25/45/85V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
    - ATtiny25/45/85: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
  • Industrial Temperature Range
  • Low Power Consumption
    - Active Mode:
  • 1 MHz, 1.8V: 300 μA
    - Power-down Mode:
  • 0.1μA at 1.8V
