| Rend. szám: |
10024016 |
| Elérhető: |
- |
| Nettó ár: |
135 167 Ft |
| Bruttó ár: |
171 662 Ft |
| |
|
| |
|
| Megjegyzés: |

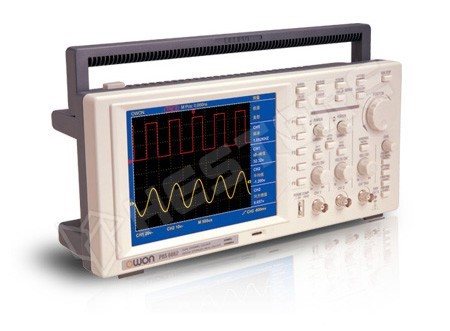

- Display: Colour
- Bandwidth: 60 MHz
- Channels: Dual
- External trigger inputs: Yes
- Real-time sample rate: 250MS/s
- Record length: 6K points per channel
- Vertical Resolution: 8-bits
- Vertical sensitivity: 5mV-5V/div
- DC Vertical Accuracy: ą5%
- Max Input Voltage: 300V CAT II
- Position Range: ą50V(500mV?5V),ą2V(5mV?200mV)
- Input Coupling: AC, AD
- Input Impedance: 1M?ą2% in parallel with 20pFą3 pF
- Time base range: 5ns-5s/div
- Time Base Accuracy: 100ppm
- Trigger modes: Auto, Free Run, Single shot, Edge, Video
- Power: 100-240 VACRMS,50Hz,CAT II
- USB or RS232 port
- Size: 350mm×157mm× 120mm
- Weight: 1kg
|
| Fájlok: |
 pds6062s.pdf
|
| |
|
